PTC10

From: Stanford Research Systems (SRS)

Class: herosdevices.hardware.srs.ptc10.PTC10

Driver Quality Index: beta

Driver for the SRS PTC10 programmable temperature controller.

This driver connects via telnet to the ethernet port.

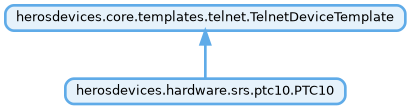

ArgumentsExample JSON for BOSSInheritance

Bold arguments are mandatory. For more information on the listed arguments refer to the class documentation: herosdevices.hardware.srs.ptc10.PTC10 If parameters appear in this list but not in the class definition, please recursively check the linked base classes for the definition of the parameter.

Argument	Type	Default Value	Description
address	<class ‘str’>		IP address of the device.
channels_tc	list | None	None	Names of PTC330 extension cards input channels.
channels_out	list | None	None	Names of the output channels.
macros	dict | None	None	A dict of macros which are written to the temperature controller and can be called with run_macro(). The dictionary keys are the names and the values the actual macro code. Note, that the macro content must be a single line string.
observables	dict | None	None	A dictionary of attributes that are emitted with the observable_data event if the device is started as a PolledDatasourceHero. If no values are given, the set temperature, actual temperature and TEC power are emitted.
