IDS Peak Camera

From: IDS Imaging Development Systems

Class: herosdevices.hardware.ids.peak_camera.PeakCompatibleCamera

Driver Quality Index: beta

Requires the following packages

ids-peak, ids-peak-ipl

A class to interface with IDS Peak cameras.

The class provides functionality to control and capture images from IDS Peak cameras. It manages camera configuration, acquisition, and data streaming.

Important

To access the camera as non-root user, you need to add the following udev rule to /etc/udev/rules.d/99-ids.rules:

ATTRS{idVendor}=="1409", MODE="666"

The vendor library must be obtained from the official website. Download the IDS peak archive file, unpack it at move the content of lib/ids/cti/ to a place where the user running the driver can access it. This path then needs to be specified via the lib_path argument (/opt/idspeak/ids/cti/ in the example below). If you install the full ids peak software via the installer, lib_path is /usr/lib/ids/cti/.

To find the cam_id of your camera, you can use the script ./bin/ids_open_camera_cpp_by_serno. Executing it will list give a list of all connected cameras:

IDS peak genericAPI "open_camera_by_serno" Sample v1.1.2

Serial numbers available:
0:  4108829617 - IDS Imaging Development Systems GmbH U3-368xXCP-M (1409f4e7c3b1 U3-368xXCP-M-2)
1:  4108829619 - IDS Imaging Development Systems GmbH U3-368xXCP-M (1409f4e7c3b3 U3-368xXCP-M-3)

In this example, the cam_id are 1409f4e7c3b1 and 1409f4e7c3b3.

Note

The node_map attribute provides access to the camera node map. If you need to set some special nodes you can use that. You can find the available nodes in the official API manuals:

Bold arguments are mandatory. For more information on the listed arguments refer to the class documentation: herosdevices.hardware.ids.peak_camera.PeakCompatibleCamera If parameters appear in this list but not in the class definition, please recursively check the linked base classes for the definition of the parameter.

Argument

Type

Default Value

Description

cam_id

<class ‘str’>

Serial number of the cam. See note above to learn how to obtain the correct serial.

config_dict

<class ‘dict’>

Dict of configuration values like shown in the json example above. The keys starting with a capital letter in the example are nodes in the camera node map. For available nodes, see the manual of your camera model.

default_config

str | None

None

Default key in config_dict to use.

lib_path

str | None

None

Path to vendor library.

reset_to_continuous

<class ‘bool’>

False

If True, the camera will be set to continuous acquisition mode on teardown.

The following JSON strings can be used to start a HERO device representation of PeakCompatibleCamera using BOSS.

{
    "_id": "my_camera",
    "classname": "herosdevices.hardware.ids.PeakCompatibleCamera",
    "arguments": {
        "cam_id": "1410d4e7c3b5",
        "lib_path": "/opt/idspeak/ids/cti/",
        "default_config": "default",
        "config_dict": {
            "default": {
                "timeout": 10,
                "ExposureTime": 1000,
                "TriggerSelector": "ExposureStart",
                "TriggerMode": "On",
                "TriggerSource": "Software",
                "AcquisitionMode": "MultiFrame",
                "AcquisitionFrameCount": 5
            }
        }
    }
}

from examples/ids/peak_camera.json

{
    "_id": "my_PeakCompatibleCamera",
    "classname": "herosdevices.hardware.ids.peak_camera.PeakCompatibleCamera",
    "arguments": {
        "cam_id": "<class 'str'>",
        "config_dict": {
            "default": {
                "ExposureTime": 1000,
                "TriggerSelector": "ExposureStart",
                "TriggerMode": "On",
                "TriggerSource": "Software",
                "AcquisitionMode": "MultiFrame",
                "AcquisitionFrameCount": 5
            }
        },
        "default_config": "default",
        "lib_path": "/opt/idspeak/ids/cti/",
        "reset_to_continuous": false
    }
}

generated from signature

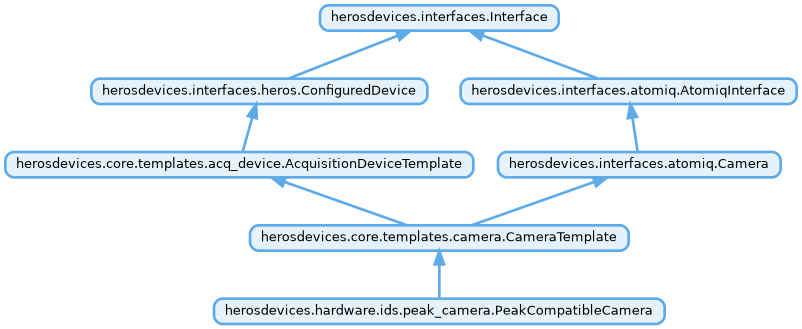

Inheritance diagram of herosdevices.hardware.ids.peak_camera.PeakCompatibleCamera
