DCAM Camera

From: Hamamatsu Photonics

Class: herosdevices.hardware.hamamatsu.dcam_camera.DcamCompatibleCamera

Driver Quality Index: beta

Requires the following packages

dcamsdk4

To use such a device, installing both, the API and the SDK4 is necessary. The API is needed to run camera and the SDK4 provides means to control the API via Python. Both can be downloaded directly from the vendor:

• DCAM-API Lite for Linux

• DCAM-SDK4

API

The API has to be installed using the included install instructions. On some linux distributions (e.g. archlinux), you have to run both parts of the installer manually after installing the necessary packages.

# example for usb camera
# add user to uucp group (possible re-login needed)
usermod -aG uucp MY_USER
# install libusb 0.x
pacman -S libusb-compat
cd DCAM_API_FOLDER_XXX
bash api/driver/usb/install.sh
bash api/runtime/install.sh

SDK4

The SDK4 contains (among other things) some Python examples on how to use the API. Therefore, it includes Python classes which encapsulate the API. These are located in the subfolder dcamsdk4/samples/python:

• dcam.py

• dcamapi4.py

• dcamcon.py

Clone the barebone package. Place the three files in question into the subfolder src/dcamsdk4/. They should reside on the same level as __init__.py.

The structure of the package should resemble:

.
├── pyproject.toml
├── README.md
└── src
    └── dcamsdk4
        ├── dcamapi4.py
        ├── dcamcon.py
        ├── dcam.py
        └── __init__.py

• Open dcam.py and replace from dcamapi4 import * by from .dcamapi4 import *.

• Open dcamcon.py and replace from dcam import * by from .dcam import *.

• Note the leading dots in both cases.

Finally, in the same Python environment herosdevices is installed in, install the dcamsdk4 with pip.

Camera object for Hamamatsu DCAM cameras.

In particular, this code has been tested with the C15550-20UP.

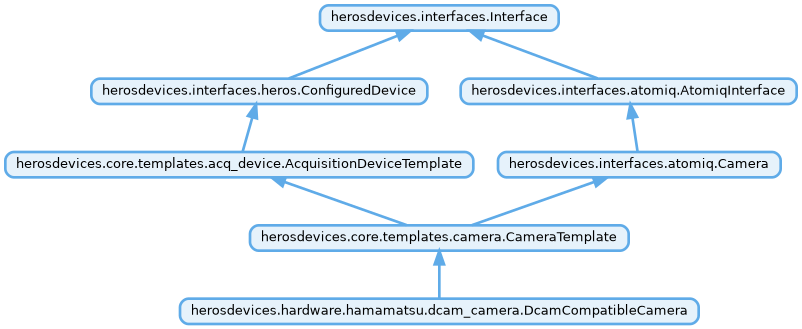

ArgumentsExample JSON for BOSSInheritance

Bold arguments are mandatory. For more information on the listed arguments refer to the class documentation: herosdevices.hardware.hamamatsu.dcam_camera.DcamCompatibleCamera If parameters appear in this list but not in the class definition, please recursively check the linked base classes for the definition of the parameter.

Argument	Type	Default Value	Description
config_dict	<class ‘dict’>		Configuration dictionary, see EXAMPLE_CONFIG
default_config	str | None	None
keep_device_open	<class ‘bool’>	True	Keep the device open after it is first opened
payload_metadata	dict | None	None
