SPC (Ethernet)¶

Class: herosdevices.hardware.gamma_vacuum.EthernetSPC

Driver Quality Index: beta

Controller for the Gamma vacuum SPC Ion pump controllers with network interface.

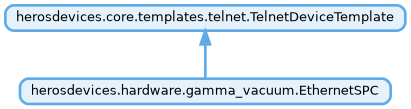

Bold arguments are mandatory. For more information on the listed arguments refer to the class documentation: herosdevices.hardware.gamma_vacuum.EthernetSPC If parameters appear in this list but not in the class definition, please recursively check the linked base classes for the definition of the parameter.

Argument	Type	Default Value	Description
address	<class ‘str’>
observables	dict \| None	None	Dictionary of attributes which should be exposed at datasource `_observable_data()` events. Of the form {“attribute_name”: {“name”: “display_name”, “unit”: “unit”}}.
timeout	<class ‘float’>	1.0

The following JSON strings can be used to start a HERO device representation of EthernetSPC using BOSS.

{
    "_id": "my_EthernetSPC",
    "classname": "herosdevices.hardware.gamma_vacuum.EthernetSPC",
    "arguments": {
        "address": "<class 'str'>",
        "observables": null,
        "timeout": 1.0
    }
}

^{generated from signature}
